Introduction

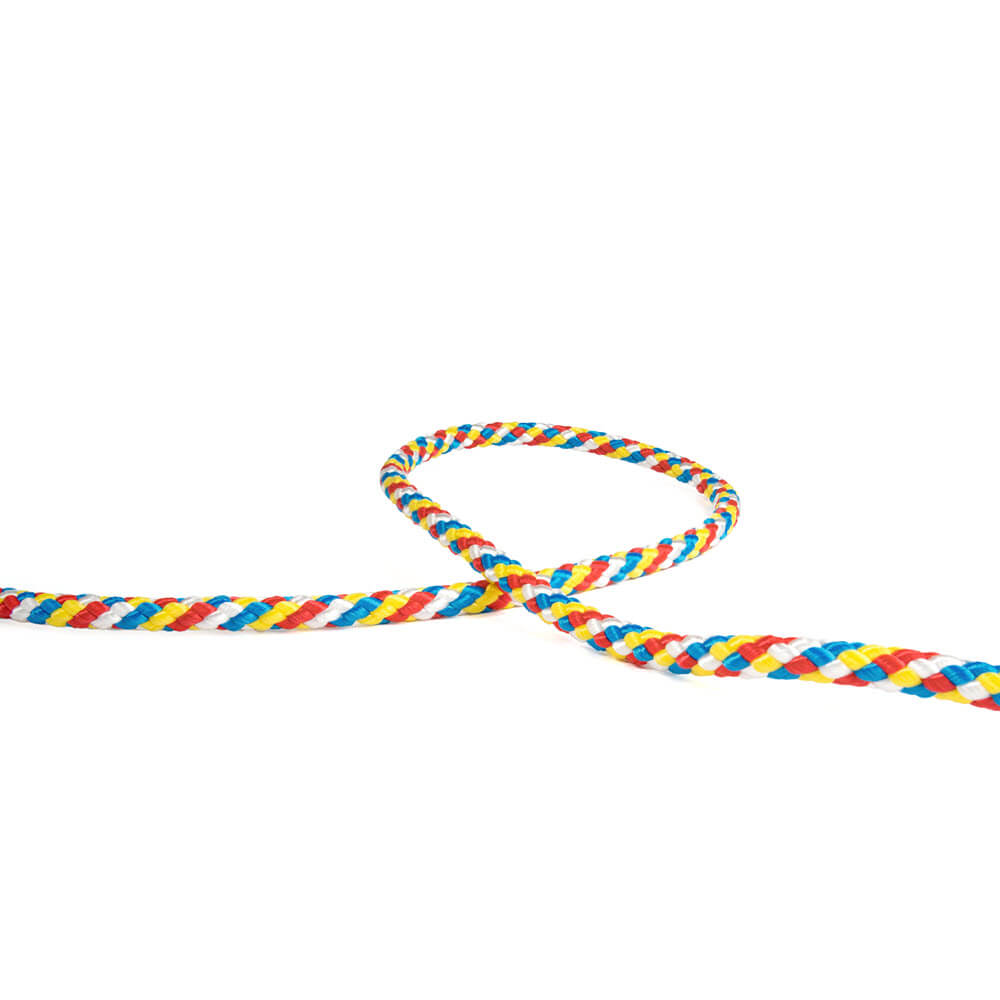

A 10 mm coloured cord in a sheath-core construction with three twisted cores — visually a solid piece of rope. The polypropylene multifilament (PPMF) construction, the colourful appearance and the braided build inspire confidence.
But what does the testing machine show?
In five repeated tensile tests, this 10 mm coloured cord broke at an average of 10.40 kN (1,060 kg). That is notably low for a 10 mm rope — and the way it broke tells at least as much as the number itself.
What type of rope is this?
This rope has a diameter of 10.0 mm and is built around a sheath-core construction with three twisted cores of polypropylene multifilament (PPMF).
The colour-woven sheath provides protection and gives the cord its decorative appearance. The three individual twisted cores together form the load-bearing construction.
Polypropylene multifilament is a lightweight synthetic material that floats on water.
It has a lower tensile strength than polyester or nylon of comparable diameter, and limited UV resistance under prolonged outdoor exposure.
The sheath-core construction offers higher efficiency than simple twisted rope, but the three separate cores also mean that the load is distributed across three individual strands — with consequences for the break behaviour, as the tests demonstrated.
Typical applications include decorative purposes, recreational sport and play, camping, marking, temporary barriers and light bundling tasks. This cord is not intended for load bearing or safety-critical applications.
Test Methodology
The tensile tests were carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without splicing.
The test speed was 20 mm/s. Five repetitions were performed to obtain a reliable average. The breaking strength was recorded at the point of final failure of the rope in each case.
An important observation during recording: the rope did not fail in a single moment, but in stages.
The recorded final value is the third break peak — see the explanation in the results section.
Results
The average breaking strength of this 10 mm coloured cord is 10.40 kN (1,060 kg), based on five tests. The highest recorded value was 10.59 kN, the lowest recorded value 9.98 kN.
The spread between the lowest and highest value is 0.61 kN — relatively narrow, indicating consistent production.
The break behaviour was, however, notable. The rope never failed in a single event. In all five tests, failure occurred in three stages: three separate break peaks, with the third marking the final break.
Never after one or two stages — always after three. This pattern is directly linked to the construction: each of the three twisted cores failed in turn, after which the sheath absorbed the load until it also gave way.
The force curve showed a rounded peak at the third stage, a sign of increasing elongation just before final failure. The rope also exhibited visible stretch.
This behaviour is reproducible and consistent across all five repetitions. It is not incidental — it is a structural characteristic of this construction.
Comparison with Other 10 mm Ropes
A breaking strength of 10.40 kN (1,060 kg) is low compared to other 10 mm ropes tested by Prorope. The difference is substantial:
- composite mix: 17.37 kN
- polypropylene: 16.19 kN
- spun polyester: 12.12 kN
Compared to the composite mix rope (17.37 kN), this coloured cord delivers 40% less tensile strength.
Even compared to spun polyester (12.12 kN) — the weakest of the three reference ropes — the difference is still 1.72 kN, or just over 175 kg.
The average breaking strength of 10 mm ropes in the Prorope test database is 15.23 kN. This cord is 32% below that figure.
That difference is not necessarily a problem, provided the rope is used within its actual capacity and for applications where tensile strength is not the critical factor.
When Is This Rope the Right Choice?
This 10 mm coloured cord is best suited to applications where appearance, handleability and low weight are the deciding factors — not tensile strength. Examples include:
- Decorative applications indoors or temporarily outdoors
- Marking and barrier cords at events or sports fields
- Camping and recreation: guy lines, hanging cords, bundling light materials
- School projects, theatre, set construction
- Applications where colour serves a functional role (coding, visibility)
The rope is best suited to situations where a short service life is acceptable and the load remains low. The soft handle and braided finish make it pleasant to work with.
Limitations
This rope is not suitable for applications where tensile strength is a critical factor. With an average breaking strength of 10.40 kN (1,060 kg) — and a lowest recorded value of 9.98 kN — it falls well below the average of 15.23 kN for 10 mm rope. The staged failure behaviour (three phases) also makes it difficult to assess when the rope is approaching its limit based on visual or tactile signals.
Polypropylene multifilament is susceptible to UV degradation under prolonged outdoor exposure. For permanent outdoor use, polyester is a better choice. The rope absorbs virtually no moisture, but the low breaking strength relative to alternatives remains its primary limitation.
This rope is explicitly not intended for load bearing, personal safety, cargo lashing or any other safety-critical application.
Alternatives
For a 10 mm rope with higher tensile strength for more demanding use, consider:
- Braided polyester 10 mm white per metre — better UV resistance, higher tensile strength, suitable for marine and outdoor use
- Braided nylon (polyamide) (10 mm, per metre, White) — higher elongation and shock absorption, suitable for anchor lines and towing applications
Both alternatives score significantly higher on tensile strength and are more durable under prolonged outdoor use.
Conclusion
This 10 mm coloured PPMF cord in sheath-core construction broke at an average of 10.40 kN (1,060 kg) — the lowest value in the Prorope test database for 10 mm rope, and 32% below the average of 15.23 kN.
The spread was narrow (9.98–10.59 kN), indicating consistent manufacture, but the absolute values are low.
The most notable aspect of this rope is not the number, but the behaviour: in all five tests, the rope always failed in exactly three stages — one per twisted core — never earlier, never differently.
Combined with the visible elongation and the rounded force curve approaching the third break, this shows that the rope retains its remaining capacity for a prolonged period but does not fail suddenly.
For applications where tensile strength is not a critical factor and decorative or functional colour is the deciding consideration, this is a consistent and predictable product.
For anything requiring higher tensile strength, braided polyester or nylon ropes are the better choice.
This test was carried out by Otto Tromm, who after five identical triple breaks is beginning to suspect this rope secretly knows how to count.
