Introduction
Polypropylene twisted rope is known as the lightweight working rope for temporary use — low cost, floating, and not always entirely predictable at break.
But what happens exactly when a 10mm version is loaded to failure? The break behaviour of this rope proved noticeably different from what is typically expected of twisted constructions.
What is the breaking strength of polypropylene twisted 10mm? In our test, this rope broke at an average of 16.19 kN (1,651 kg), based on 5 measurements.
The highest measurement was 17.21 kN, the lowest 15.37 kN.
What Type of Rope Is This?

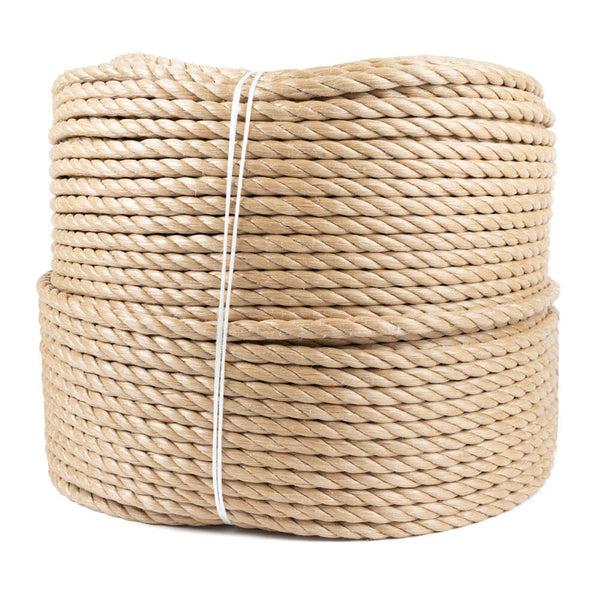

Polypropylene twisted rope is a twisted construction rope made from polypropylene fibres. The twisted construction — three strands wound around each other — is the most traditional rope construction. It is straightforward to splice and relatively low cost to produce.
Polypropylene as a material has a number of specific properties. It is the lightest synthetic fibre rope and floats on water.
UV resistance, however, is the lowest of all synthetic fibres: with prolonged outdoor exposure, polypropylene degrades significantly.
Tensile strength per diameter is lower than polyester or nylon of the same size.
Typical applications for polypropylene twisted 10mm include: barrier lines, temporary lashing, agricultural use, water surface work (due to buoyancy), and general use where no high safety factor is required.
This rope is not suitable for safety-critical applications.
Test Method
The test was carried out on a universal testing machine with rope-specific clamps (wedge or capstan type), suitable for measuring rope without rope splices.
The test speed was 20 mm/s.
5 repetitions were performed on 5 lengths of rope from the same batch.
The ropes were tested in dry condition, without pre-tension. Breaking strength is defined as the measured force at the moment of failure.
Results
The average breaking strength of polypropylene twisted 10mm is 16.19 kN (1,651 kg). The highest measured value was 17.21 kN, the lowest 15.37 kN.
This is the result of 5 individual tensile tests.
A notable feature of this test was the break pattern. In contrast to other twisted ropes — where multiple successive breaks typically occur (strand by strand) — this rope produced a clean, consistent load curve with only one distinct break peak per test.
This indicates a more even load distribution across the three strands than is usual for twisted constructions.
In each measurement, however, one strand consistently remained unbroken. This phenomenon is consistent with what has previously been observed in thinner twisted polypropylene rope, and is likely a result of the geometry of the twisted construction: when two strands fail completely, the third partially unloads before the force reaches its break point.
In general, no official MBL (Minimum Breaking Load) is published for this type of rope in this class.
The measured average of 16.19 kN provides a realistic indication for use in practical calculations, with the understanding that the lowest measured value of 15.37 kN should be used as the conservative baseline.
Comparison with Similar Ropes (10mm)
For reference: how does polypropylene twisted 10mm compare to other 10mm ropes tested by Prorope?
- Composite mix 10mm: 17.37 kN
- Polypropylene twisted 10mm (this rope): 16.19 kN
- Spun polyester 10mm: 12.12 kN
At 16.19 kN, polypropylene twisted 10mm sits between composite mix (17.37 kN) and spun polyester (12.12 kN).
The difference from composite mix is 1.18 kN (approximately 7%).
The difference from spun polyester is 4.07 kN (approximately 34%). These are not negligible differences in applications where load or safety margins are a factor.
When to Use This Rope
Polypropylene twisted 10mm is best suited to temporary applications where buoyancy, low weight, and low cost take priority over long-term strength or UV resistance.
- Water surface work: this rope floats, making it suitable for barrier lines, rescue lines on water, and marking on open water.
- Agriculture and livestock: temporary fencing, binding, bundling — applications with limited sun exposure and loading.
- General lashing and storage: for short-duration loads below 3 kN working load (at a safety factor of 5:1 on the lowest measured value of 15.37 kN).
- Guide line or lifting aid: light auxiliary functions where no safety-critical load is attached.
Limitations
This rope is not suitable for the following situations:
- Prolonged outdoor exposure: polypropylene has the lowest UV resistance of all synthetic fibres. Strength loss through UV degradation occurs with unprotected outdoor use over months to years. The extent of loss depends on exposure duration and climate, but can be substantial.
- Safety-critical applications: this rope is not certified for personal protection, lifting of persons, or applications requiring mandatory working load documentation.
- Elevated temperatures: polypropylene loses strength at temperatures above 80°C and deforms permanently. Do not use near heat sources or in industrial environments with heat exposure.
- Shock loading: with relatively low elasticity, twisted polypropylene absorbs less energy than nylon (20–35% elongation at break). For tow lines or anchor applications where shock loading occurs, nylon is a better choice.
- Permanent static loading: under sustained load, creep occurs, particularly at elevated temperatures. Do not use for long-term fixed tensions.
Alternatives
Depending on the application, two direct alternatives are available in the same diameter:
- Polyester braided 10mm white per metre — higher UV resistance, better abrasion resistance, suitable for more permanent outdoor use. Polyester loses less than 5% strength when wet and shows no significant creep under normal loading.
- Nylon braided (polyamide) (10mm, per metre, White) — higher elongation at break (20–35%), making it better suited for shock absorption in tow line or anchor applications. Note: nylon loses 10–15% strength when wet.
Conclusion
Polypropylene twisted 10mm breaks at an average of 16.19 kN (1,651 kg) and is best suited to temporary, lightweight applications where buoyancy or low cost is the deciding factor.
For applications involving prolonged UV exposure, permanent loading, or safety-critical requirements, this rope is not the appropriate choice.
The distinctive break behaviour — one clean peak per measurement, with consistently one unbroken strand — makes this rope more predictable than many other twisted constructions, but does not change the material limitations of polypropylene itself.
This test was carried out by Otto Tromm, who discovered — to his own surprise — that this polypropylene rope consistently held to one clean break at a time, while the third strand appeared to simply refuse to join in.
The test data were collected by Prorope. This text was generated using AI on the basis of those data and verified for factual accuracy. Read how we test and publish →
