A 10 mm sheet line might sound like an ordinary rope — but what happened during the breaking strength tests was anything but ordinary.
Before the rope broke, it produced a series of small clicking sounds reminiscent of a stringed instrument. What does that mean exactly, and what does it tell us about the actual breaking strength?
The average breaking strength of the Sheet Line 10 mm (spun polyester) is 12.12 kN (1,236 kg), measured across 5 tensile tests on a universal testing machine.
What type of rope is this?

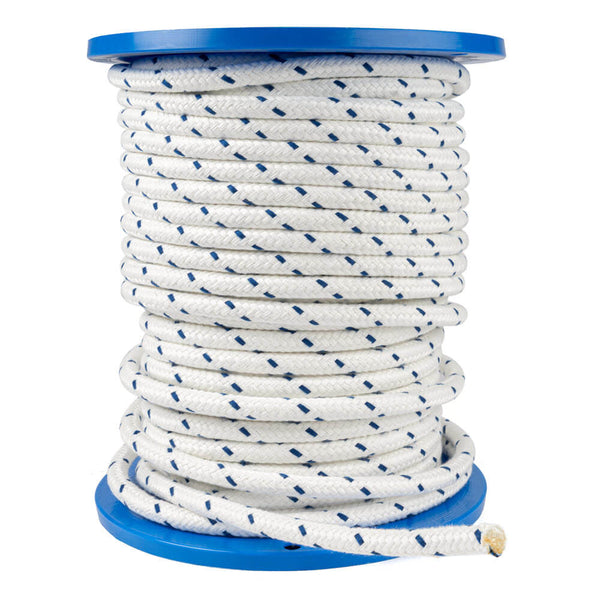

The Sheet Line 10 mm is made from spun polyester — spun polyester fibres that give the rope a slightly rough, soft texture. This distinguishes it from smooth braided polyester (filament polyester): spun polyester has a matte appearance and feels somewhat softer in the hand.
Polyester as a material has low water absorption (approximately 1%) and retains more than 95% of its dry breaking strength when wet.
It is UV-resistant, abrasion-resistant, and does not creep under normal loads. This makes it suitable for applications where the rope is regularly exposed to the elements.
Typical applications for sheet line of this size include sailing, flag lines, rigging, dock work, and light lifting applications.
The 10 mm size is generally chosen when a comfortable grip is important alongside adequate tensile strength.
Test method
The tensile tests were carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without the need for splicing.
The test speed was 20 mm/s. 5 repetitions were performed.
No pre-tension was applied before the test; slack was removed manually.
Results were recorded as the maximum force at the moment of break.
This follows the guidelines of the ISO 2307:2019 standard
Test results
The average breaking strength across 5 tensile tests is 12.12 kN (1,236 kg). The highest measured value was 12.43 kN, the lowest 11.91 kN.
The spread between the highest and lowest measurement is 0.52 kN — a relatively narrow range indicating consistent product quality.
Notable during the tests was the sound the rope produced before the final break. Before the rope failed completely, multiple small, invisible fibre breaks were audible — a clicking sound, comparable to the plucking of strings.
In test 2, these clicks were recorded at 10.08 kN, 10.9 kN, 11.12 kN and 11.72 kN, while the final break only occurred at a higher force.
This is a significant finding. With twisted rope, the rope typically reaches its maximum force at the first audible fibre break.
With this spun polyester sheet line, that is not the case: individual fibres fail progressively, but the rope as a whole continues to carry the load until all fibres have cumulatively failed.
The same pattern was observed previously with the 6 mm and 8 mm versions of this rope.
This is construction-specific behaviour of spun polyester that is relevant when interpreting sounds during loading in practice.
Comparison with other 10 mm ropes
For reference: other 10 mm ropes previously tested on the same universal testing machine show the following results:
- Composite mix (10 mm): 17.37 kN
- Polypropylene (10 mm): 16.19 kN
- Spun polyester sheet line (10 mm): 12.12 kN
The spun polyester sheet line scores lowest in this comparison in terms of breaking strength. The composite rope is approximately 43% stronger, the polypropylene rope approximately 34% stronger.
This is a relevant consideration when breaking strength is the primary requirement.
That said: polypropylene has significantly lower UV resistance and degrades considerably faster under prolonged outdoor exposure than polyester.
The composite rope is generally heavier and stiffer.
For applications where weight, a fine grip, and weather resistance are more important than absolute tensile strength, polyester remains a relevant choice.
When is this rope most suitable?
The Sheet Line 10 mm spun polyester is best suited for applications requiring a combination of adequate tensile strength, UV resistance, and comfortable handling.
Specifically:
- Sheets and halyards on recreational sailing yachts — the elongation properties of polyester (10–15% at break) provide some shock absorption; the rough texture provides grip.
- Flag lines and rigging — UV-resistant and stable under prolonged outdoor exposure.
- Dock work and mooring — retains more than 95% breaking strength when wet; no strength loss due to rain or seawater.
- Light lifting applications — with a working load calculated using a safety factor of 5:1, 12.12 kN corresponds to a working load of approximately 2.42 kN (247 kg).
Limitations
The Sheet Line 10 mm spun polyester is not suitable for all applications. Consider the following:
- High breaking strength required: With an average of 12.12 kN, this rope scores lower than composite (17.37 kN) or polypropylene (16.19 kN) of the same diameter. For applications where every kN counts, these alternatives are stronger.
- Minimal elongation required: Polyester has 10–15% elongation at break. For applications where virtually no elongation is acceptable (such as in certain lifting systems or precision rigging), HMPE is a better choice.
- Progressive fibre failure: As described in the test results, this rope does not produce a single clear audible signal point when approaching breaking strength. Audible clicks are not a reliable indicator that maximum force has been reached.
Alternatives
Depending on the application, there are alternatives that may be more suitable:
- Nylon braided (polyamide) (10 mm, per metre, White) — higher elongation (20–35% at break), excellent shock absorption. Suitable for anchor lines and tow ropes. Note: nylon loses 10–15% breaking strength when wet.
- Prorope HMPE rope (10 mm, price per metre, Blue) — significantly higher breaking strength, less than 4% elongation at break, no strength loss when wet. Suitable when minimal elongation and maximum tensile strength are required.
Conclusion
The Sheet Line 10 mm spun polyester is best suited for recreational sailing and rigging applications where UV resistance, wet strength, and comfortable handling are more important than absolute breaking strength.
With an average breaking strength of 12.12 kN (1,236 kg) across 5 tensile tests, the rope delivers consistent and predictable performance — but where higher tensile forces are required, HMPE or composite alternatives are more appropriate.
The progressive failure behaviour — with audible clicks well before the final break — is a distinctive characteristic of spun polyester that should not be mistaken for a break signal in practice.
This test was carried out by Otto Tromm, who now knows exactly what a rope sounds like just before it gives up — and that, much like a good bass player, it doesn't stop until the last string goes.
The test data were collected by Prorope. This text was generated on the basis of those data using AI and checked for factual accuracy. Read how we test and publish →
