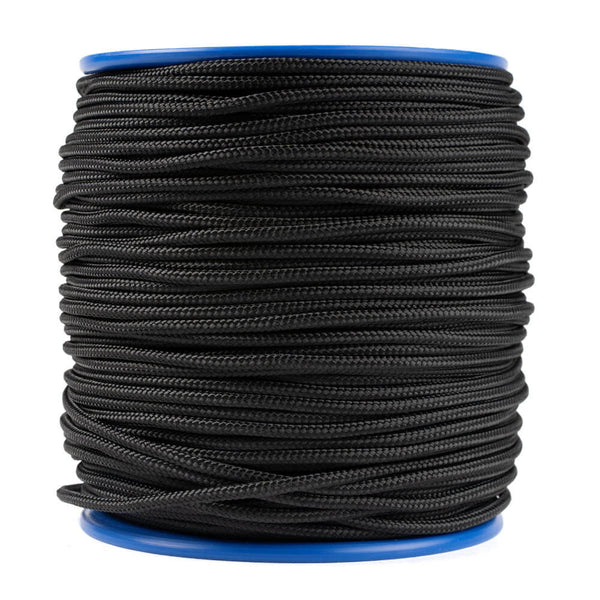

HMPE with polyester sheath 4 mm — breaking strength test
A 4 mm rope that breaks at nearly twice the class average — that requires an explanation.
The combination of material and construction plays a notable role here, and the test results also showed a behavioural pattern that has not always been observed this consistently in earlier tests.
What is the breaking strength of HMPE with polyester sheath 4 mm?
In our test, this rope broke at an average of 6.70 kN (683 kg), measured over 5 repetitions.
What type of rope is this?
This rope has a core of HMPE (High-Modulus Polyethylene, also known under brand names such as Dyneema or Spectra) and a braided polyester sheath.
The construction is core-sheath: the core carries the majority of the tensile load, while the sheath protects the core against UV radiation, abrasion, and mechanical damage.
HMPE is the strongest synthetic fibre material per unit of weight available.
The rope floats on water, absorbs virtually no moisture, and does not lose strength in wet conditions.
Elongation at break is below 4%, meaning this rope absorbs almost no energy — it is a static rope, not a dynamic one.
The polyester sheath adds UV resistance and abrasion resistance. Polyester absorbs less than 1% moisture and retains more than 95% of its strength in wet conditions.
In this construction, the sheath serves primarily a protective function; in core-sheath constructions the core carries 50–70% or more of the load.
Typical applications: static lifting, sailing and rigging, technical applications with low elongation requirements, precision tackle systems, and applications where weight is a factor.
Test method
The test was carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without splices.
The test speed was 20 mm/s. 5 repetitions were performed on the same rope, each time using a fresh section.
No pre-tension was applied before the test.
The tests were conducted dry.
The results represent the actual breaking strength under controlled conditions — not the MBL as guaranteed by a manufacturer based on batch averages.
Test results
Average breaking strength: 6.70 kN (683 kg)
Highest measured value: 6.82 kN
Lowest measured value: 6.50 kN
Number of tests: 5
The spread between the highest and lowest value is 0.32 kN — a difference of less than 5% relative to the average. This indicates a consistent manufacturing process.
A notable observation from this test series: in none of the 5 cases did the rope break completely.
In every case, the polyester sheath remained fully intact. The core failed under load, but the sheath held.
This is typical behaviour for core-sheath constructions — the sheath is more flexible than the HMPE core and can accommodate more elongation before it tears.
In earlier tests with comparable constructions, a complete break of both core and sheath was occasionally observed. Here that occurred 0 out of 5 times.
Practical implication: during visual inspection after overloading, the sheath may appear intact while the core is already damaged or broken.
Never rely solely on the appearance of the sheath after a shock load.
Comparison with other 4 mm ropes
The 6.70 kN of this rope is considerably higher than the average for 4 mm ropes in our test database of 3.71 kN. For comparison:
- HMPE 12-strand braided: 17.93 kN
- HMPE: 5.59 kN
- nylon: 4.31 kN
This rope performs 20% better than single-braid HMPE of the same diameter (6.70 kN versus 5.59 kN).
The core-sheath construction has a higher efficiency factor than a single braid, which explains the higher breaking strength.
Nylon 4 mm achieves 4.31 kN — 36% less — but has an elongation at break of 20–35%, making it more suitable for shock absorption.
The 12-strand braided HMPE rope at 4 mm achieves 17.93 kN: more than 2.5× stronger.
That is a different product for a different application — heavier, thicker relative to the nominal diameter, and intended for applications with extreme tensile strength requirements.
When is this rope best suited?
This rope is best suited for static applications where low elongation, high strength, and a compact diameter need to be combined. Specific applications:
- Static lifting where the weight of the rope itself is a factor
- Sailing and rigging: low elongation provides direct response; polyester sheath offers UV protection
- Precision tackle and block-and-tackle systems where elongation disrupts operation
- Technical rope applications where weight savings relative to polyester or nylon are an advantage
- Wet environments: HMPE does not lose strength through water absorption; polyester sheath loses less than 5%
The WLL at a safety factor of 5:1 is 1.34 kN (136 kg). At a safety factor of 10:1 — common in life-safety applications — the WLL is 0.67 kN (68 kg).
Limitations
This rope is not suitable for the following situations:
- Shock loading and dynamic forces: elongation at break is below 4%. There is almost no energy absorption. Under a fall load or sudden shock, the force is transferred directly to the connection points. Use nylon (20–35% elongation) or polypropylene for dynamic applications.
- Prolonged static loading at high temperatures: HMPE exhibits creep (permanent elongation) above 60°C. Do not use for permanent loading in warm environments.
- Visual safety inspection after overloading: as the test demonstrated, the polyester sheath can remain intact while the core has already failed. An intact-looking sheath is not a guarantee of an intact core.
- Sharp edges and corners: HMPE has a low melting point (~150°C) and can be rapidly damaged by friction over sharp edges despite the sheath.
- Running applications: core-sheath with HMPE core is not designed for repeated bending and tensile cycles over sheaves or rollers.
Alternatives
If the low elongation of HMPE is a disadvantage for your application, the following are relevant alternatives:
- Braided polyester (4 mm, per metre, White): elongation at break of 10–15%, better shock absorption than HMPE, lower breaking strength but more robust under dynamic loading. Good resistance to UV and abrasion.
- Braided nylon (polyamide) (14 mm, price per metre, White): elongation at break of 20–35%, the best shock-absorbing synthetic fibre. Note: nylon loses 10–15% strength in wet conditions. Not suitable for applications where low elongation is required.
Conclusion
HMPE with polyester sheath 4 mm, with an average breaking strength of 6.70 kN (683 kg), is the strongest 4 mm rope in our test database, second only to single-braid constructions.
It is best suited for static, low-elongation applications in wet or UV-exposed environments where weight and compactness are important.
Note that the polyester sheath may remain intact after overloading while the HMPE core has already failed — visual inspection alone is insufficient following a critical loading event.
This test was conducted by Otto Tromm, who after 5 tests is still waiting for a sheath that gives up first.
