Editor: Otto Tromm | Test date: 10-4-2026
Introduction
Cotton has a long history as a rope material. It is soft to the touch, has a neat appearance, and is widely used for decorative and craft applications. But how strong is an 8 mm braided cotton cord — and what does it mean to make such a cord without core? That is what we measured.
The result is clear: 1.07 kN (109 kg), averaged over five measurements. That is the breaking strength of this 8 mm braided cotton cord without core.
For anyone uncertain whether this is sufficient for a particular application: read on, because context matters at least as much as the number itself.

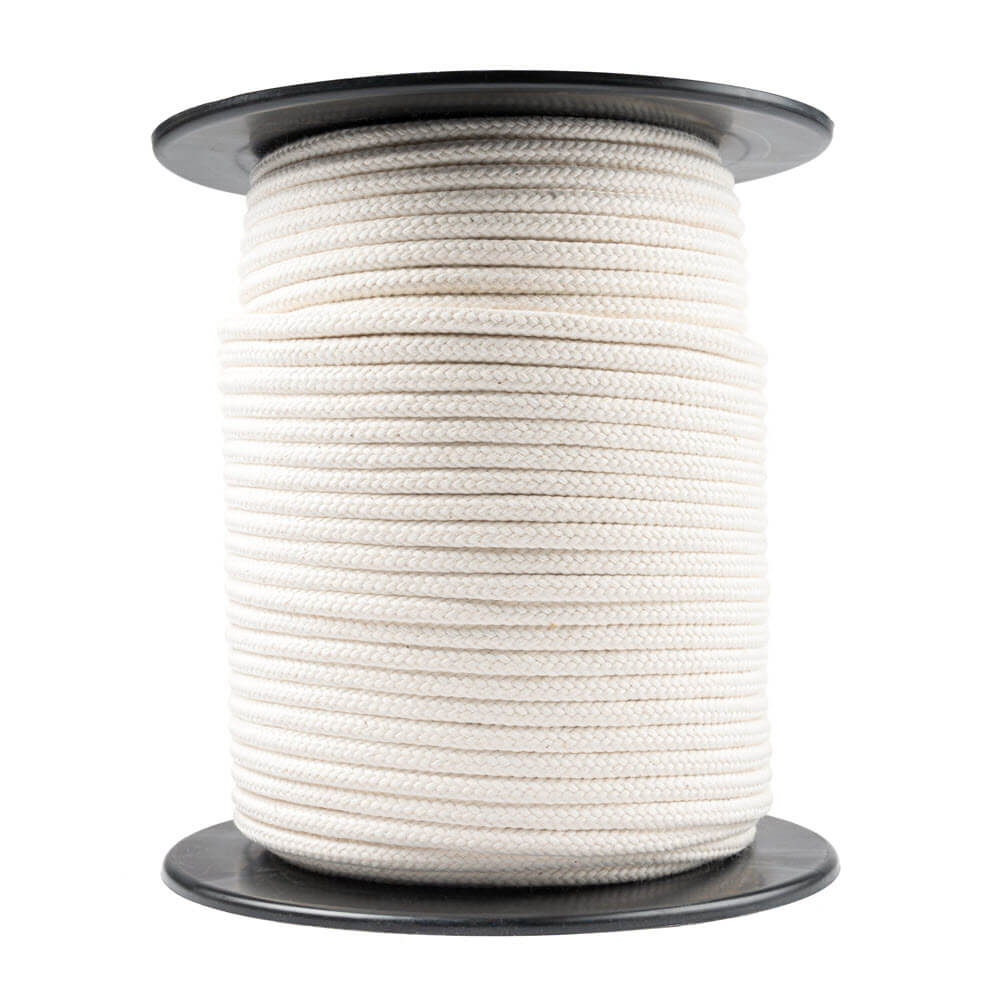

What Type of Rope Is This?
This cord consists of cotton fibres braided into a hollow construction — without core. This means the entire strength is carried by the braided sheath itself. There is no inner core providing additional tensile strength. The result is a flexible, lightweight cord with a pleasant hand feel.
Cotton is a natural fibre. Compared to synthetic materials, its tensile strength is low. Cotton absorbs water, contracts when damp, and loses strength when wet.
Typical applications are decorative: macramé, gift wrapping, hobby and craft work, and presentation purposes where appearance takes priority over strength.
Test Method
The cord was tested on a universal testing machine with rope-specific clamps, suitable for measuring rope without splices or knots.
The test speed was 20 mm/s. Five measurements were carried out on separate lengths of cord from the same product. In all cases, breaking strength was recorded as the maximum force measured at the point of break.
No pre-tension was applied prior to measurement. Results are presented as the average, highest, and lowest measured value across the five tests.
The test was conducted as closely as possible in accordance with ISO 2307:2019.
Results
The average breaking strength of the 8 mm braided cotton cord without core is 1.07 kN (109 kg). The highest measured value was 1.16 kN; the lowest was 1.01 kN. This is based on five individual tests.
The spread between measurements is limited — approximately 15% between the lowest and highest value — indicating a consistent construction. However, the absolute level is low.
For comparison: the average for 8 mm synthetic rope in our tests is approximately 6.11 kN. This cotton cord performs at less than 20% of that average.
A notable finding in the test: the same cord with core (product code T-3649) has a breaking strength approximately 50% higher, despite that core being relatively thin.
That difference is significant for an addition that is barely visible to the eye.
The conclusion is unambiguous: for applications where any tensile load is involved, the presence of a core makes a significant difference — even in cotton cord.
Comparison with Other 8 mm Ropes
The values below were measured using the same test setup, on the same universal testing machine, at a diameter of 8.0 mm:
- Cotton braided without core (this product): 1.07 kN
- Polypropylene: 10.57 kN
- Polyester sheath/core with twisted core (all loose fibres): 10.17 kN
- Polyester sheath/core — 32-strand braided: 9.38 kN
The difference is substantial. Polypropylene achieves nearly ten times the breaking strength of this cotton cord at the same diameter. Even the lowest-cost synthetic options consistently outperform it on tensile strength. This is not a criticism of the product — cotton is not used for those applications — but it does provide context for the figure of 1.07 kN.
When Is This Cord the Right Choice?
This cord is best suited to applications where appearance, feel, and material aesthetics are the priority, and where tensile load plays no role. Specifically:
- Macramé and decorative braiding
- Wrapping gifts or products where a natural look is required
- Theatre and studio use as a prop or decoration
- Craft and hobby projects where children or beginners are working with rope
- Styling and photography where the cotton appearance contributes to a natural aesthetic
The soft structure and neutral appearance make this cord suitable for environments where synthetic material looks too stiff, too shiny, or too technical.
Limitations
This cord is not suitable for applications involving any tensile load, loading, or safety considerations. A breaking strength of 1.07 kN (109 kg) may seem acceptable on paper, but under shock loading, dynamic forces, or prolonged use, the effective strength decreases further.
Cotton absorbs water. In damp conditions, swelling occurs and strength decreases further — a loss of 20–30% under fully wet conditions is realistic for natural fibres. UV exposure accelerates fibre degradation. Cotton is therefore not suitable for long-term outdoor use.
Abrasion is another consideration: without core, the entire construction depends on the braided sheath. Wear on the outside directly affects the remaining strength. There is no inner core to take over load-bearing capacity when the outer sheath is damaged.
In summary: do not use this cord for securing, lashing, hanging, pulling, or any other application where forces are applied to the cord.
Alternatives
For applications requiring a similar diameter but with actual tensile strength, a synthetic braided cord is the appropriate choice:
- Polyester braided 8 mm black per metre — polyester offers a breaking strength of approximately 9–10 kN at 8 mm, good UV resistance, and low water absorption. Suitable for marine, outdoor use, and light rigging.
- Nylon braided (polyamide) (8 mm, price per metre, White) — nylon has the highest elongation of synthetic fibres (20–35% at break) and is therefore suitable for applications with shock loading. It loses approximately 10–15% strength when wet, but remains structurally usable.
Conclusion
The breaking strength of 8 mm braided cotton cord without core is 1.07 kN (109 kg), measured across five tests with a highest value of 1.16 kN and a lowest of 1.01 kN. This is significantly lower than synthetic alternatives of the same diameter, and also clearly lower than the same cotton cord with core, which achieves approximately 50% more breaking strength despite a relatively thin core.
The absence of a core therefore has a measurable effect — larger than one would expect based on appearance alone. For decorative and craft applications where no forces are applied to the cord, this cord is entirely fit for purpose. For anything involving tensile load, a different material is the correct choice.
This test was carried out by Otto Tromm, who after measuring 1.07 kN had to briefly check whether the testing machine was actually running — because this is the kind of result that makes you suspect the machine before you suspect the cord.
The test data were collected by Prorope. This text was generated with AI on the basis of those data and checked for factual accuracy. Read how we test and publish →
