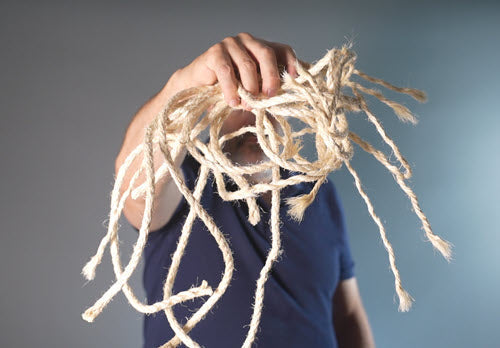

BREAKING STRENGTH 8 MM SISAL ROPE 4.17 kN — well below average
Sisal looks strong. The test results tell a different story. Five tensile tests, one conclusion: this rope is not for tensile loads.
8 mm sisal rope breaks at an average of 4.17 kN (425 kg) — over 37% weaker than the average for 8 mm rope in our test database.
Sisal looks robust: a stiff, fibrous structure that feels firm in the hand. The assumption that such a rope also delivers tensile strength is understandable — but the test results correct that assumption directly. Across five tensile tests on 8 mm sisal rope, the average breaking strength was 4.17 kN. By comparison, a braided nylon rope of the same diameter reaches more than 12 kN. This is not a marginal difference — it is a factor of three.
The five measurements ranged from 3.97 kN to 4.36 kN, a spread of 0.39 kN. That spread at the first break point was relatively limited.
What was notable, however: in almost every test, one or more strands remained intact after the first break. In test 5, two strands even remained with only one registered break.
In the other four tests, a second break always followed — but the spread at that second break was markedly large: between 1.8 kN and 3.4 kN.
That is a bandwidth of 1.6 kN, indicating that the remaining strands are loaded very unevenly after the first failure.
The material and construction
8 mm sisal rope is constructed from twisted fibres of the sisal agave, a plant-based material in a 3-strand twisted construction.
Natural fibres such as sisal inherently have a lower tensile strength than synthetic alternatives of the same diameter. In addition, sisal absorbs moisture, which reduces strength further — in wet use, breaking strength in comparable natural fibres decreases by 20–30%.
The construction consists of multiple strands that must collectively absorb the tensile load; the test results show that in practice this load is distributed unevenly across the strands.
This rope is part of our Interior rope collection.
The methodHow we test
The breaking strength tests are carried out in-house by Otto Tromm on a universal testing machine with a capacity of 50 kN.
For this machine there are 2 sets of specially developed rope clamps, deployed depending on the diameter and material of the rope.
These clamps allow rope to be tested without first needing to be spliced.
All tests are conducted in accordance with the guidelines of ISO 2307:2019. This includes, among other things, testing 5 times and using a test speed of 20 mm per minute.
Each rope is secured in such a way that it is taut. No pre-tension is applied, as elongation is not being tested in these tests.
Each test is filmed from 2 angles using a Sony camera on a tripod. The exact progression of the graph is additionally recorded on video separately. This allows the stress progression and break behaviour to be matched precisely with the graph from the breaking strength test machine.
For each of the 5 tests, observations are also recorded in writing by the tester, so that factors such as the degree of elongation, the manner in which the rope breaks, and the loudness of the snap when the rope fails are all documented.
In every test, strands remained — but the spread in residual capacity was so large as to be practically unusable.— from the test context, five measurements on 8 mm sisal
Test results
Five tensile tests at 20 mm/min produced a consistent picture: the first break always occurred between 3.97 kN and 4.36 kN, with an average of 4.17 kN (425 kg). The spread of 0.39 kN is acceptably uniform for a natural fibre rope — the first break is therefore reasonably predictable.
The anomalous behaviour occurred in the phase after the first break. Because strands did not fail simultaneously, residual load capacity always remained.
That residual capacity varied considerably, however: the second break occurred between 1.8 kN and 3.4 kN.
This makes the overall failure behaviour of sisal rope difficult to predict. For applications where progressive failure is undesirable — or where the complete loading cycle matters — this is a relevant limitation to be aware of.
Comparison with other 8 mm ropes
The breaking strength of 8 mm sisal rope is considerably lower than that of synthetic alternatives of the same diameter. The figures below are measured values from Prorope tests.
Braided nylon with core reaches 12.57 kN — more than three times that of sisal. Braided nylon without core comes in at 12.07 kN.
Even polypropylene, the weakest commonly used synthetic rope, measures 10.57 kN — still 2.5× the value of sisal. The difference is not marginal and justifies a deliberate material choice based on application.
In practice: When to use — and when not to use — sisal rope
The low breaking strength of sisal rope rules out certain applications, but does not make the material unusable. The choice depends entirely on the function the rope needs to fulfil.
✓ Suitable for
- Decorative wall decoration — sisal has a characteristic, rough appearance that suits natural and industrial interiors.
- Stair railing or handgrip — as a visual and tactile element, not as a safety component.
- Blinds and folding curtains — for operation based on the weight of the fabric, without significant tensile load.
- Craft and DIY projects — binding, decorative knots, macramé-style applications indoors.
- Packaging and presentation — sisal is widely used for wrapping vases, pots, and decorative objects.
✕ Not suitable for
- Load-bearing applications — at an average of 4.17 kN (425 kg), the safety margin for any serious load is too small.
- Outdoor use — sisal absorbs water and degrades rapidly under UV radiation and moisture.
- Wet environments — water absorption reduces strength in natural fibres by 20–30%.
- Sustained static load — natural fibres are susceptible to fatigue and biological degradation under prolonged tension.
- Safety applications or fall protection — this material is entirely unsuitable for such purposes.
Alternatives where tensile strength is required
Conclusion: sisal rope for indoors, not for loads
8 mm sisal rope breaks at an average of 4.17 kN (425 kg), performing considerably weaker than synthetic alternatives of the same diameter.
The uneven failure behaviour — where strands break progressively with a large spread in residual capacity — makes the material unsuitable for any application requiring tensile strength or predictable behaviour. H
owever, the rope is well suited for decorative interior applications, wall decoration, and craft projects where the natural appearance of sisal is the primary reason for use.
If you have an application requiring both appearance and some tensile strength, consider braided polyester 8 mm or braided nylon 8 mm.
Otto Tromm carried out the tensile tests, carefully noted how many strands remained after each break, and resisted the temptation to put a positive spin on it.
