Editor: Otto Tromm | Test date: 15-4-2026
Dyneema 1.5 mm rope with coating: breaking strength tested
Small rope diameters are often underestimated. A 1.5 mm rope sounds fragile, but when that rope is made from Dyneema, the diameter tells only half the story.
The question is not whether such a thin rope is strong enough, but exactly how strong it is — and what effect a coating has on that strength.
Prorope tested this 1.5 mm Dyneema rope with light coating on a universal testing machine.
The result: an average breaking strength of 2.44 kN (249 kg) based on 5 measurements.
This 1.5 mm Dyneema rope with coating is nearly 37% stronger than the average 1.5 mm rope on the market — and performs virtually identically to the same rope without coating.
What is 1.5 mm Dyneema rope?
Dyneema is an HMPE fibre (High-Modulus Polyethylene) with the highest strength-to-weight ratio of all synthetic fibres.
The rope is braided without core — a single braided construction — and finished with a thin, light coating. This coating has a slightly less glossy surface than the smooth coating on the 2 mm variant.
Dyneema absorbs virtually no water and therefore retains its full strength in wet conditions.
Elongation at break is very low: less than 4%. This means minimal energy absorption, but maximum direct tensile force.
Typical applications for this size include:
- Control and guide lines in mini cranes and breakdown trucks
- Pull-line work and precision mechanical systems
- Lightweight lifting lines where weight and compactness are critical
- Applications requiring high breaking strength in a minimal diameter
How was the breaking strength of 1.5 mm Dyneema rope measured?

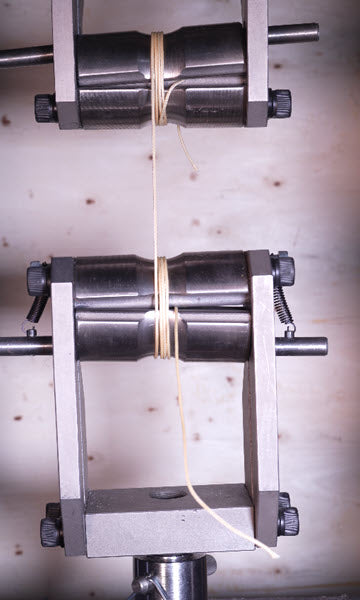

The tests were carried out on a universal testing machine with rope-specific clamps, suitable for thin braided constructions.
The test speed was 20 mm/s, in line with standard methodology for ropes in this diameter range. A total of 5 individual measurements were taken.
Breaking strength was determined as the maximum force at the moment of break. No pre-tension was applied prior to measurement.
Testing followed ISO 2307:2019 as closely as possible.
Breaking strength of 1.5 mm Dyneema rope: test results
The 5 measurements produced the following results:
- Average breaking strength: 2.44 kN (249 kg)
- Highest measured value: 2.55 kN
- Lowest measured value: 2.31 kN
The spread between the highest and lowest value is 0.24 kN — a variation of approximately 10%. This is acceptable for a braided construction without core in this thin diameter range.
A notable finding: the coating has virtually no measurable effect on breaking strength.
This 1.5 mm rope with coating measured 2.44 kN, compared to 2.51 kN for the same rope without coating — a difference of just 0.07 kN (less than 3%).
In contrast, the 2 mm variant with coating showed a significantly lower breaking strength than the 2 mm without coating.
This suggests that the coating on the 2 mm variant is of a different type — smoother and possibly with a different fibre bonding — whereas the coating on the 1.5 mm variant is lighter in colour and less glossy.
The coating itself therefore does not account for the strength difference between the 1.5 mm and 2 mm variants.
1.5 mm Dyneema rope compared to other ropes
The test results were compared against other ropes of the same diameter, also tested by Prorope:
- Dyneema braided without coating, without core: 2.51 kN — 0.07 kN stronger than the coated variant; the difference is negligible
- Kevlar 1.5 mm: 1.05 kN — 57% weaker than the Dyneema rope with coating
The average of all 1.5 mm ropes tested by Prorope is 1.78 kN. This coated Dyneema rope is 37% above that average.
The Kevlar rope reaches less than half the breaking strength of the Dyneema, despite the high theoretical tensile strength of Kevlar as a fibre.
This is related to the core-sheath construction: the 1.5 mm Kevlar consists of a thin Kevlar core with a polyester sheath.
When should you use 1.5 mm Dyneema rope?
This rope is best suited to applications requiring maximum tensile force in a minimal diameter, where weight and space are critical.
Specific use cases:
- Mini cranes and breakdown trucks: 2.44 kN in a 1.5 mm diameter is an exceptionally compact combination for guide lines and control cables
- Precision mechanical systems: the low elongation (<4%) provides direct, predictable response without spring loss
- Wet environments: Dyneema absorbs no water and therefore retains full strength — usable in marine and outdoor applications without a correction factor
- Weight-critical applications: Dyneema floats on water and has a density below 1.0 g/cm³ — the lightest rope in its strength class
The light coating offers some protection against surface abrasion without any measurable effect on breaking strength, making this rope suitable for applications with limited contact with guides or edges.
When is Dyneema rope not suitable?
Dyneema has specific limitations that are relevant to the selection process:
- Prolonged static loading at high temperatures: HMPE fibres exhibit creep (permanent elongation) under sustained load above 60°C. Dyneema is not suitable for static lifting applications at elevated temperatures.
- Shock absorption: with less than 4% elongation at break, this rope absorbs minimal energy. For applications requiring shock load absorption — such as tow ropes or anchor lines — nylon (20–35% elongation) is the appropriate choice.
- Knots: knots reduce the breaking strength of braided Dyneema by 40–60%. An overhand knot leaves approximately 45% of breaking strength. For connections, a spliced eye is strongly recommended (splice efficiency >90%).
- Safety-critical applications without a certified MBL: a certified MBL is generally not issued for this rope. Prorope test data is informational and does not replace certified product specifications for life-safety applications.
Alternatives to 1.5 mm Dyneema rope
For situations where Dyneema is not the right choice, two relevant alternatives are available in a comparable size:
-
Polyester braided 1.5 mm: lower breaking strength than Dyneema, but better UV resistance in outdoor applications with prolonged sunlight exposure.
Elongation is 10–15%, providing some shock absorption. More cost-effective for less demanding applications.
-
Nylon braided 1.5 mm: significantly higher elongation (20–35%) — suitable where shock absorption is a requirement.
Note: nylon loses 10–15% breaking strength when wet. Not suitable where low elongation is essential.
Conclusion: breaking strength of 1.5 mm Dyneema rope with coating
The average breaking strength of this 1.5 mm Dyneema rope with light coating is 2.44 kN (249 kg), based on 5 measurements with a spread of 2.31 to 2.55 kN.
This is 37% above the average of all tested 1.5 mm ropes (1.78 kN) and only 0.07 kN below the uncoated equivalent.
The most notable finding is that the coating on this rope has no measurable effect on breaking strength — the difference compared to the uncoated variant is less than 3%.
This contrasts with the 2 mm coated variant, which scores significantly lower than the uncoated 2 mm.
The explanation likely lies in the coating type: the 1.5 mm coating is lighter in colour and less glossy than the coating on the 2 mm variant, indicating a different coating process or material.
This is a relevant technical observation for anyone basing rope selection on coating type.
For applications requiring maximum tensile force in a minimal diameter — such as mini cranes, breakdown trucks, and precision mechanical systems — this rope is a technically sound choice.
This test was carried out by Otto Tromm, who still cannot get over the fact that a coated rope is almost as strong as an uncoated one — while the opposite holds true for the 2 mm variant, which now means he scrutinises the gloss level of every coating choice with considerable suspicion.
