A 3 mm rope sounds harmless. But nylon has a property few other materials match: it absorbs energy like a spring and releases it all at once at the moment of break.
What happens when a 3 mm braided nylon cord is loaded to failure?
In five consecutive breaking strength tests, this cord broke at an average of 2.90 kN (296 kg). The highest measured value was 3.00 kN, the lowest 2.76 kN — a spread that confirms the consistency of the material.
What type of rope is this?

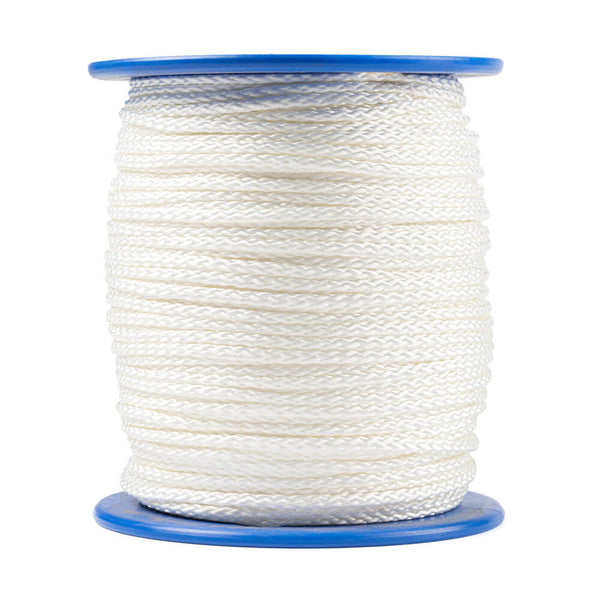

This is a braided nylon cord with a diameter of 3.0 mm, constructed without core (single braid). The material is polyamide (PA), commonly referred to as nylon.
Nylon is the most elastic of the common synthetic fibres: elongation at break ranges between 20 and 35%, depending on construction and load.
Braided nylon without core is a compact, smooth construction that performs well under dynamic loads. The absence of a core makes the rope light and flexible, though slightly more susceptible to surface wear than a sheath-and-core rope.
Typical applications include lashings, tie-downs, packaging and craftwork — anywhere where some stretch is functional or the shock-absorption of nylon is an advantage.
Test methodology
The tests were carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without splicing or knotting the ends.
The test speed was 20 mm/s.
The cord was tested five times, each time using a fresh, unused piece. No pre-tension was applied prior to testing.
Values were recorded as the maximum tensile strength at the moment of break.
Test results
The average breaking strength of this 3.0 mm braided nylon cord is 2.90 kN (296 kg), based on five tests.
The highest measured value was 3.00 kN, the lowest 2.76 kN. The spread between the highest and lowest value is 0.24 kN — a variation of less than 9%, indicating a consistent material.
Notable during the tests was the behaviour of the force curve. Unlike stiff materials such as HMPE or aramid — which show a tight, linear curve up to the break point — this nylon cord displayed small, undulating movements in the measurement trace.
This is expected from a high-elasticity material: the fibres yield, stretch, and redistribute the load internally before the whole structure fails.
What was unexpected, given the modest diameter of 3 mm: the cord broke with a loud crack each time. Described as a whip crack.
This is physically consistent — nylon converts stored elastic energy directly into kinetic energy at the moment of break. At larger diameters this effect is well known and carries a safety warning.
At 3 mm the effect is surprisingly loud and sharp.
This is a safety consideration when working close to the rope under high load.
Comparison with other 3 mm ropes
To place the measured value in context, the results were compared with two other ropes of the same diameter (3 mm) previously tested on the same universal testing machine:
- Kevlar 8-strand braided without core: 5.85 kN
- Kevlar sheath-and-core with 2 twisted cores running parallel: 2.16 kN
The braided nylon cord (2.90 kN) clearly outperforms the Kevlar sheath-and-core with parallel cores (2.16 kN), a difference of 0.74 kN or 34% higher breaking strength.
Compared to the 8-strand braided Kevlar construction (5.85 kN), the nylon variant measures 2.95 kN lower — a difference of over 50%.
This is not unexpected: Kevlar has a higher tensile strength per diameter than nylon by nature. However, nylon compensates with elasticity.
Under dynamic loads, nylon absorbs energy that with Kevlar translates directly into peak load at the anchor point or attachment.
When to use this rope
This rope is best suited for applications where a combination of adequate tensile strength (approximately 2.90 kN average) and stretch is functional:
- Light lashings and tie-downs where shock absorption is useful
- Packaging and construction applications on a temporary basis
- Craftwork and macramé where the suppleness of braided nylon is desirable
- Small-scale anchor line connections, where elasticity absorbs wave action
Limitations
This rope is not suitable for the following situations:
- Applications requiring low elongation — 20–35% elongation at break means that measurable extension occurs under higher loads. For precision work or static suspensions this is undesirable.
- Prolonged UV exposure — nylon degrades faster under extended UV radiation than polyester. Outdoor applications require periodic inspection or replacement.
- Working under tension in proximity to people — as described in the test observations, this cord breaks with a loud crack comparable to a whip crack. A safety distance is required when used near people under high load.
Alternatives
If a higher breaking strength is required, or if low elongation is a requirement, the following alternatives are worth considering:
- 3 mm HMPE with black polyester sheath per metre — HMPE offers a significantly higher breaking strength than nylon at the same diameter, with less than 4% elongation at break. Suitable for applications requiring minimal stretch and maximum strength.
- HMPE cord 3 mm with black sheath - per metre — comparable HMPE construction with polyester outer sheath, providing UV protection and extending service life in outdoor use.
Note: HMPE does not absorb shock energy and is therefore less suitable for dynamic loads where nylon offers its key advantage.
Conclusion
Braided nylon rope of 3.0 mm delivers an average breaking strength of 2.90 kN (296 kg), with a low spread across five tests (2.76–3.00 kN).
It is best suited for dynamic or shock-sensitive applications where some elongation is acceptable or even desirable — such as light lashings, anchor line connections and small-scale outdoor applications.
For applications requiring low elongation or higher tensile strength, HMPE is the better choice.
This test was carried out by Otto Tromm, who after five loud cracks concluded that a 3 mm rope makes more noise than his colleagues at the coffee machine.
