Kevlar is known for its high strength — but what does a 4 mm Kevlar cord with polyester sheath actually produce on a universal testing machine? And why did the first break in our test deviate from the expected pattern, when normally the opposite occurs?
In our test, this rope achieved an average breaking strength of 2.96 kN (302 kg), measured across 5 tensile strength tests on a universal testing machine. The highest recorded result was 3.05 kN; the lowest was 2.90 kN.
What type of rope is this?

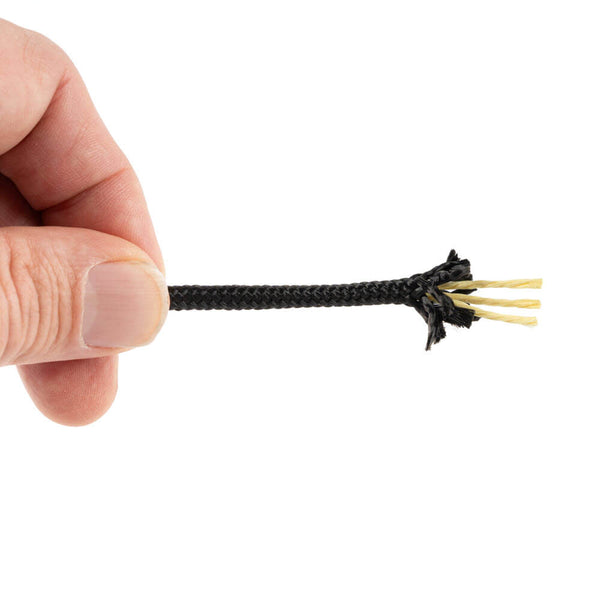

This is a 4 mm Kevlar cord with a polyester sheath. The core consists of aramid fibres (Kevlar), which are known for their very high tensile strength, low elongation, and excellent heat resistance.
The outer sheath is polyester, which serves two functions: protecting the UV-sensitive aramid fibres from sunlight, and providing a better grip in the hand.
Kevlar without a protective sheath degrades rapidly under UV exposure. The polyester sheath significantly extends service life in outdoor applications.
Elongation at break is very low — considerably lower than polyester or nylon — meaning there is virtually no shock absorption.
This rope is intended for applications where stiffness, cut resistance, and low elongation are required, such as cordwork, technical lashings, and light static loads.
Test method
The test was carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without splicing it.
The test speed was 20 mm/s.
5 individual tensile tests were performed. No pre-tension was applied before the test.
The average, highest, and lowest values were calculated from all 5 measurements.
Results
The average breaking strength was 2.96 kN (302 kg), based on 5 tests. The highest measured value was 3.05 kN; the lowest was 2.90 kN. The spread between the highest and lowest measurement is 0.15 kN, which is relatively narrow.
A notable characteristic of this test series: the first break produced a lower value than the subsequent breaks. Normally the pattern is reversed — the first measurement is typically the highest, as the rope fails sooner under repeated loading due to accumulating micro-damage.
In this case, the first test did not run to completion; only the second test ran fully. This explains the atypical order of values.
The remaining 4 measurements are close together and provide a reliable picture of the actual breaking strength.
How does this rope compare to similar ropes?
To put the 2.96 kN of this 4 mm Kevlar rope into context, a comparison with other ropes tested by Prorope:
- HMPE 12-strand braided: 17.93 kN
- HMPE with sheath and core: 6.70 kN
- HMPE: 5.59 kN
HMPE variants score considerably higher in absolute tensile strength. The HMPE sheath-and-core rope reaches 6.70 kN — more than twice the value of this Kevlar cord.
That difference is relevant when pure tensile strength is the priority.
The Kevlar cord performs on other properties, however: heat resistance and cut resistance of the core.
When to use this rope
This rope is best suited to applications requiring low elongation, cut resistance in the core, and limited heat resistance at a small diameter. Specific applications:
- Light static suspensions and cord connections where elongation is undesirable
- Technical lashings in environments with moderate heat exposure
- Cordwork where the cut resistance of aramid fibres is an advantage
- Applications where low weight combined with high strength is desirable at small diameters
The polyester sheath also makes this rope more suitable for outdoor applications than unsheathed Kevlar, provided UV exposure remains limited.
Limitations
This rope is not suitable for the following situations:
- Shock loading: elongation at break is very low. Under sudden dynamic loading — such as a fall or jerk — there is virtually no energy absorption. Nylon or polyester are safer choices for those applications.
- Prolonged static loading at high temperature: aramid fibres are heat resistant, but sustained loading at elevated temperature can cause creep. Not suitable for permanent suspensions close to heat sources.
- Repeated bending loads: Kevlar loses significant strength through fatigue when repeatedly bent and flexed. This rope is not suitable for use on sheaves, pulleys, or dynamic running systems.
- High-load applications: with an average breaking strength of 2.96 kN, the working load at a safety factor of 5:1 is only 0.59 kN (60 kg). For heavier lifting work, larger diameters or HMPE rope are more appropriate.
- Prolonged UV exposure: the polyester sheath provides protection, but under continuous direct sunlight the service life decreases. Regular visual inspection is recommended.
Alternatives
For those considering a different rope for comparable applications:
- Braided polyester (4 mm, per metre, White) — higher elongation than Kevlar (10–15% at break), no UV degradation of the core, better fatigue resistance under bending loads. Lower cost and broadly applicable for static and semi-dynamic applications.
- Braided nylon (polyamide) (14 mm, price per metre, White) — maximum shock absorption (20–35% elongation at break), ideal for anchor lines, tow ropes, and applications with dynamic shock loading. Note: nylon loses 10–15% strength when wet.
Conclusion
The 4 mm Kevlar cord with polyester sheath achieves an average breaking strength of 2.96 kN (302 kg) and is best suited to light static applications requiring low elongation, cut resistance, and a compact diameter.
The test results were consistent — with the exception of the first measurement, which deviated from the expected pattern due to an incomplete test run — which increases confidence in the remaining measurements.
For dynamic, shock-loaded, or heavily loaded applications this rope is not the right choice; HMPE or nylon perform better in those situations. Within its intended application range, however, this rope delivers reliable, repeatable results at a small diameter.
This test was carried out by Otto Tromm, who still loses sleep over the fact that the first break came in lower than the second — because normally it is exactly the other way around, and he does not appreciate ropes that ignore the rules.
