Cotton is not known as a performance fibre. But how weak is it in practice — and what does that mean for an 8mm rope with an 8-strand braided construction? The test results are straightforwardly honest.
The average breaking strength of this 8mm 8-strand braided cotton rope is 1.29 kN (132 kg), measured across 5 tests with a highest value of 1.32 kN and a lowest of 1.24 kN.

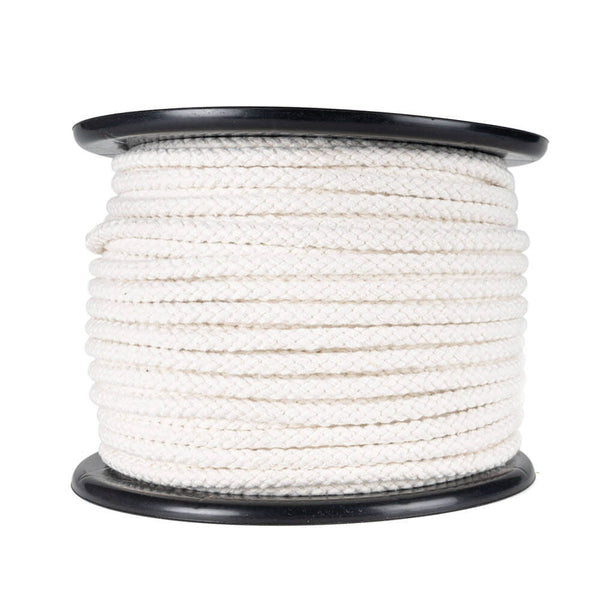

What type of rope is this?
This rope is made from cotton, a natural fibre. The construction is 8-strand braided, without core. That means eight strands interlaced with one another, with no separate core structure adding additional strength.
Cotton rope is used almost exclusively for decorative, craft, and theatrical applications — decorative hangings, props, handcraft, packaging, and styling.
The rope has a soft, matte appearance and a pleasant feel — properties that are relevant for decorative use, but not for any load-bearing application.
Cotton absorbs water and loses strength as a result. Biological degradation occurs under prolonged damp conditions.
This material is not suitable for outdoor or humid environments.
Test method
The tests were carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without splicing.
The test speed was 20 mm/s.
5 repetitions were performed. No pre-tension was applied before measurement.
Results
The average breaking strength across 5 tests is 1.29 kN (132 kg). The highest measured value was 1.32 kN; the lowest was 1.24 kN. The spread between tests is small: 0.08 kN between the highest and lowest value, indicating a consistent material.
In the first test, the rope broke almost completely, but the final strands held and the measurement had to be concluded. All four remaining tests ran to full break.
This suggests the break in the first test followed a slightly different pattern — possibly due to clamp position or a minor irregularity in the rope.
Notable across all tests: the rope exhibits significant elongation before failure. The break itself is gradual — a dull snap, not the sharp crack typical of stiffer materials.
This is characteristic of cotton: the fibres yield progressively, distributing energy over a longer period.
In a safety engineering context this could be considered an advantage, but this rope is not intended for such applications.
Comparison with other 8mm ropes
For context: the average breaking strength of 8mm ropes in other materials is significantly higher. The figures below come from the same test environment at equal diameter.
- Polypropylene 8mm: 10.57 kN
- Polyester sheath-core — 32-strand braided: 9.38 kN
- PPMF 2 cores of loose fibres, sheath-core construction: 8.51 kN
- This cotton rope: 1.29 kN
The cotton rope is therefore roughly 6.6 to 8.2 times weaker than synthetic alternatives of the same diameter.
This is not a measurement error or manufacturing defect — it is inherent to the material. Cotton is naturally a weak fibre, and the 8-strand construction without core adds no structural reinforcement.
When is this rope best suited?
This rope is best suited for applications where strength is irrelevant and where the visual or tactile character of cotton is the primary requirement. Specifically:
- Decorative indoor hangings where the rope functions purely for aesthetic purposes
- Props and theatrical decor where an authentic, matte appearance is required
- Handcraft and macramé where the soft grip and workability of cotton is practical
- Packaging and product presentation where the appearance of the rope contributes to the overall look
- Educational or demonstration purposes where rope behaviour at break point is explained visually or tactilely
The gradual break — progressive, with significant elongation and no sharp snap — also makes this rope usable in situations where a sudden energy release at break is undesirable.
Limitations
This rope is not suitable for the following applications:
- Any load-bearing application: at 1.29 kN, the breaking strength is extremely low relative to other materials of the same diameter.
- Outdoor use: cotton absorbs water, loses strength as a result, and degrades rapidly through UV exposure and biological breakdown.
- Humid or wet environments: water absorption leads to swelling, loss of strength, and accelerated rot.
- Applications involving friction or abrasion: the abrasion resistance of cotton is significantly lower than that of polyester or polyamide.
- Prolonged static use under load: even without moisture, cotton ages under sustained mechanical tension.
The 8-strand construction without core provides no compensation for the inherent weakness of the fibre. A sheath-core construction with a cotton core would theoretically be slightly stronger, but would not eliminate the fundamental limitation of the material.
Alternatives
Where greater strength or durability is required at a comparable diameter, the following alternatives are available:
- Polyester cord 0.8 mm diameter. Various colours. (0.8 mm, per metre, Blue) — polyester offers significantly higher breaking strength, good UV resistance, and minimal water absorption. Suitable for applications in outdoor or humid conditions.
- Nylon braided (polyamide) (8 mm, price per metre, White) — nylon has the highest elongation of all synthetic fibres (20–35% at break) and absorbs shock effectively. It loses 10–15% strength when wet, but remains far stronger than cotton of the same diameter.
Conclusion
This 8mm 8-strand braided cotton rope is suitable exclusively for decorative, craft, and theatrical indoor applications where the visual character of cotton is the primary consideration and strength plays no role. With a breaking strength averaging 1.29 kN (132 kg) — compared to 8.51 to 10.57 kN for synthetic alternatives of the same diameter — it is not intended for any form of load bearing.
This test was carried out by Otto Tromm, who after recording 1.29 kN briefly wondered whether the machine had understood the assignment — but after five identical tests and a dull snap by way of confirmation, concluded that cotton is simply cotton.
The test data were collected by Prorope. This text was generated with AI on the basis of that data and checked for factual accuracy. Read how we test and publish →
