Nylon has a reputation as the rope that absorbs energy — but what exactly happens in the seconds before it breaks?
When testing this 7 mm nylon cord, small sounds were audible, forces briefly dropped, and the whole thing ended with a loud bang.
Enough to make you take notice.
What is the breaking strength of 7 mm nylon cord? In our test: an average of 9.76 kN (995 kg), measured across 5 tensile strength tests on a universal testing machine.
What type of rope is this?

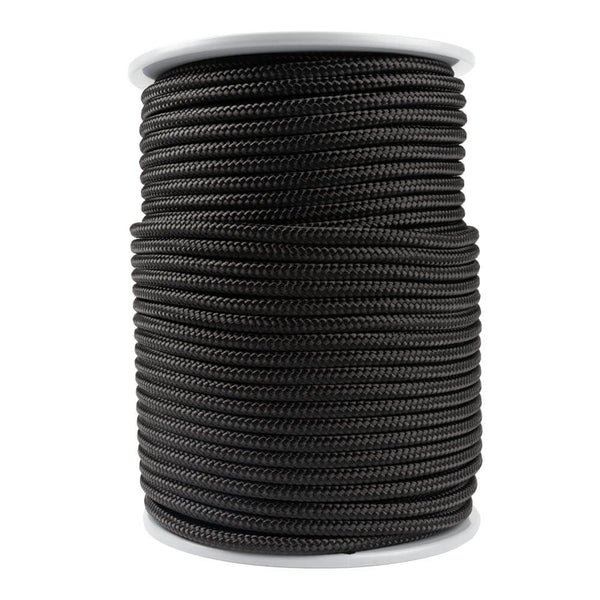

This is a 7 mm nylon cord, also referred to as polyamide (PA). Nylon is the synthetic fibre type with the highest elongation: at break, elongation reaches 20–35%.
This allows the rope to absorb energy under shock loading, which distinguishes it from low-elongation materials such as polyester or HMPE.
This cord is specifically used for high-speed doors and pull cords for overhead doors — applications where the rope is loaded repeatedly and a degree of elasticity is functionally beneficial.
Nylon loses approximately 10–15% of its breaking strength when wet; for dry indoor applications such as high-speed doors, this is generally not relevant.
Test methodology
The tests were carried out on a universal testing machine with rope-specific clamps, suitable for measuring rope without splices. The test speed was 20 mm/s.
5 repetitions were performed. No pre-tension was applied prior to testing.
The measured breaking strength is the actual tensile force at rope failure, expressed in kilonewtons (kN) and kilograms (kg, converted using 1 kN = 101.97 kg).
The test results have not been corrected for construction type or knot efficiency — these are the raw breaking strength values of the rope as supplied.
Test results
The average breaking strength of 7 mm nylon cord is 9.76 kN (995 kg), based on 5 tests.
The highest measured value was 10.88 kN; the lowest was 9.01 kN.
The spread between the highest and lowest value is 1.87 kN, indicating some variation between the test samples.
A notable observation across the tests: just before the final break, 2 small sounds were audible each time, combined with a temporary drop in the accumulated tensile force.
The final breaking strength was, however, higher than these intermediate dips, which may indicate that localised fibre bundles failed before total failure occurred — the remaining structure then took up the load again and reached a higher peak value.
The final failure was accompanied by a loud bang.
In some tests, a squeaking sound was audible earlier rather than a snapping sound, possibly depending on the specific fibre distribution or clamp interaction at that moment.
For safety-critical applications, the lowest measured value — 9.01 kN (919 kg) — serves as the most conservative reference.
The WLL (working load limit) is calculated by dividing the MBL by a safety factor; for lifting and hoisting applications, a minimum of 5:1 generally applies, which equates to a maximum of approximately 1.80 kN (184 kg) when using the average value.
Comparison with other ropes
No comparative data with other ropes of similar diameter is available for this product. Once additional test results become available, this section will be updated.
See our other test posts for breaking strength measurements of polyester and HMPE in comparable diameters.
When is this rope most suitable?
This 7 mm nylon cord is most suitable for applications where shock absorption and repeated dynamic loading are factors. Specifically:
- High-speed doors and pull cords for overhead doors — the primary application for this cord. The elasticity of nylon (20–35% elongation at break) absorbs shocks during rapid door movement.
- Indoor lifting and pulling applications — in dry environments, nylon retains its full strength of 9.76 kN on average.
- Applications with dynamic shock loading — where a low-elongation material such as polyester or HMPE would transfer the shock directly to the attachment points.
With a WLL calculation using a safety factor of 5:1 on the average breaking strength, the recommended working load is a maximum of 1.95 kN (199 kg).
Limitations
Nylon is not suitable for all situations.
Relevant limitations for this 7 mm cord:
- Wet conditions: nylon loses 10–15% of its breaking strength when wet. In outdoor or wet environments, the effective breaking strength drops to approximately 8.30–8.80 kN. This must be factored into the WLL calculation.
- Low-elongation requirement: for applications requiring minimal elongation (precision positioning, standing rigging, lifting with tight tolerances), nylon is unsuitable. Polyester or HMPE offer lower elongation at the same load.
- UV exposure: prolonged outdoor exposure accelerates degradation. Although nylon is more resistant than polypropylene, it is less UV-stable than polyester.
- Construction unknown: because the exact construction has not been specified, no statements can be made regarding splice efficiency or behaviour at knot connections. A figure-8 knot typically reduces breaking strength to 55–65% of the measured value — in this case approximately 5.37–6.34 kN.
- Spread in test results: the variation of 1.87 kN between the lowest (9.01 kN) and highest (10.88 kN) measurement indicates that for safety-critical applications, the lowest value must always be used as the basis.
Alternatives
Polyester 7 mm: suitable when lower elongation is required. Polyester has an elongation of 10–15% at break compared to 20–35% for nylon, and loses less than 5% of its strength when wet. Ideal for outdoor applications or applications where the elasticity of nylon is undesirable.
HMPE / Dyneema 7 mm: for applications requiring maximum strength at minimum weight and minimal elongation. HMPE has an elongation of less than 4% at break and is unaffected by water.
Drawback: no shock absorption, and significantly higher cost than nylon.
Conclusion
This 7 mm nylon cord has an average breaking strength of 9.76 kN (995 kg) and is most suitable for dynamic applications such as high-speed doors and pull cords for overhead doors, where shock absorption and repeated loading are central requirements.
The behaviour at break — with intermediate force drops and a loud final bang — confirms the characteristic behaviour of nylon fibre under tensile load.
This test was carried out by Otto Tromm, who — upon hearing the two mysterious pre-bang sounds — briefly checked his hearing protection, and then simply carried on measuring.
The test data were collected by Prorope. This text was generated with AI on the basis of that data and verified for factual accuracy. Read how we test and publish →
